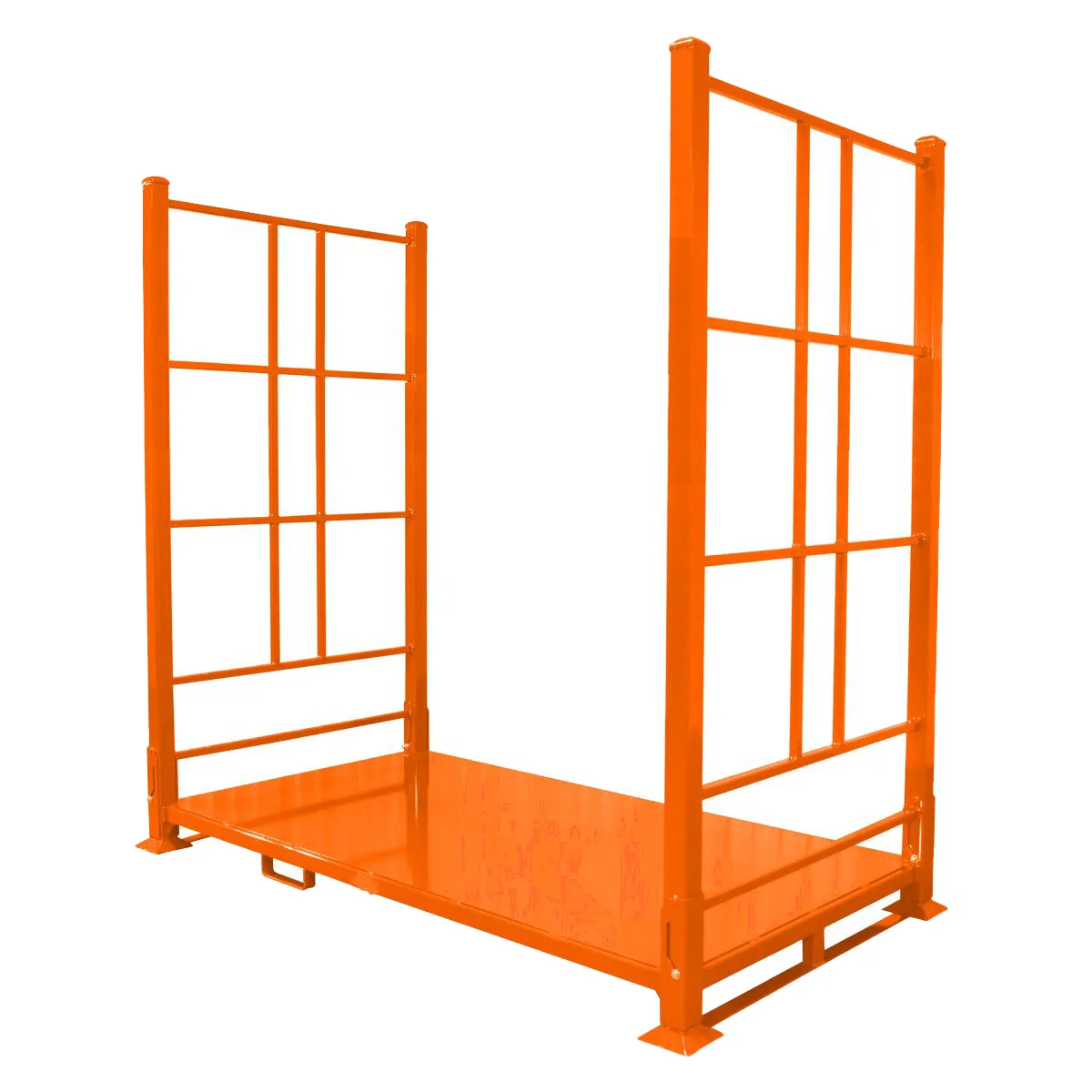

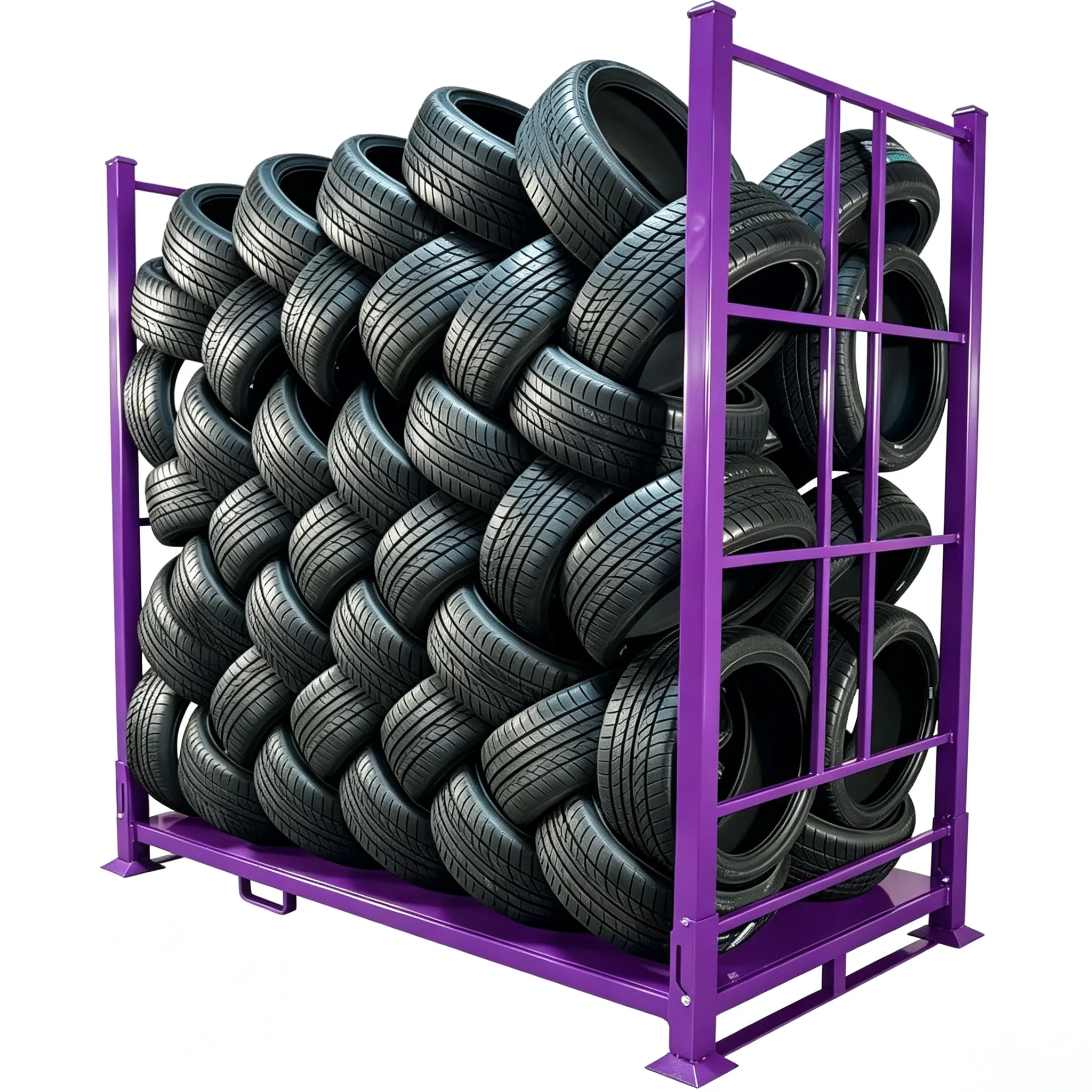

Tyre rack for large quantities of the same SKU of tyres

Powder-coated Foldable Stackable

YOUR TIRE. OUR RACK. THE PERFECT FIT.

Tyre Rack Specification Table

Model	Dimensions LxDxH (mm)	Load Capacity (KG)	Weight (KG)	Tyre Capacity per Rack	Max Tyre Diameter (mm)	Rack Stack Limit
TSR-8080	2120×2120×1520	2400	80	20	1120	4
TPTR	2360×1160×1410	2200	89	50	710	6
JX-03	2430×1270×2210	2200	173	89	1090	4
JX-04	2320×1050×790	660	51	24	660	9
JX-05	2320×1050×1210	1200	58	7	1100	6
JX-06	2320×1150×1280	1200	58	7	1200	7
JX-07	1690×1080×1540	1760	90	36	640	6
JX-08	2230×1220×1240	1200	66	7	1100	5
JXFR	2280×1080×1260	1750	61	8	1100	6
JXFR-P	2380×1220×1430	1100	132	8	1120	4
JXSL	1839×1270×1730	1100	91	50	760	5
TSLR	2160×1230×1320	2400	45	50	1120	6

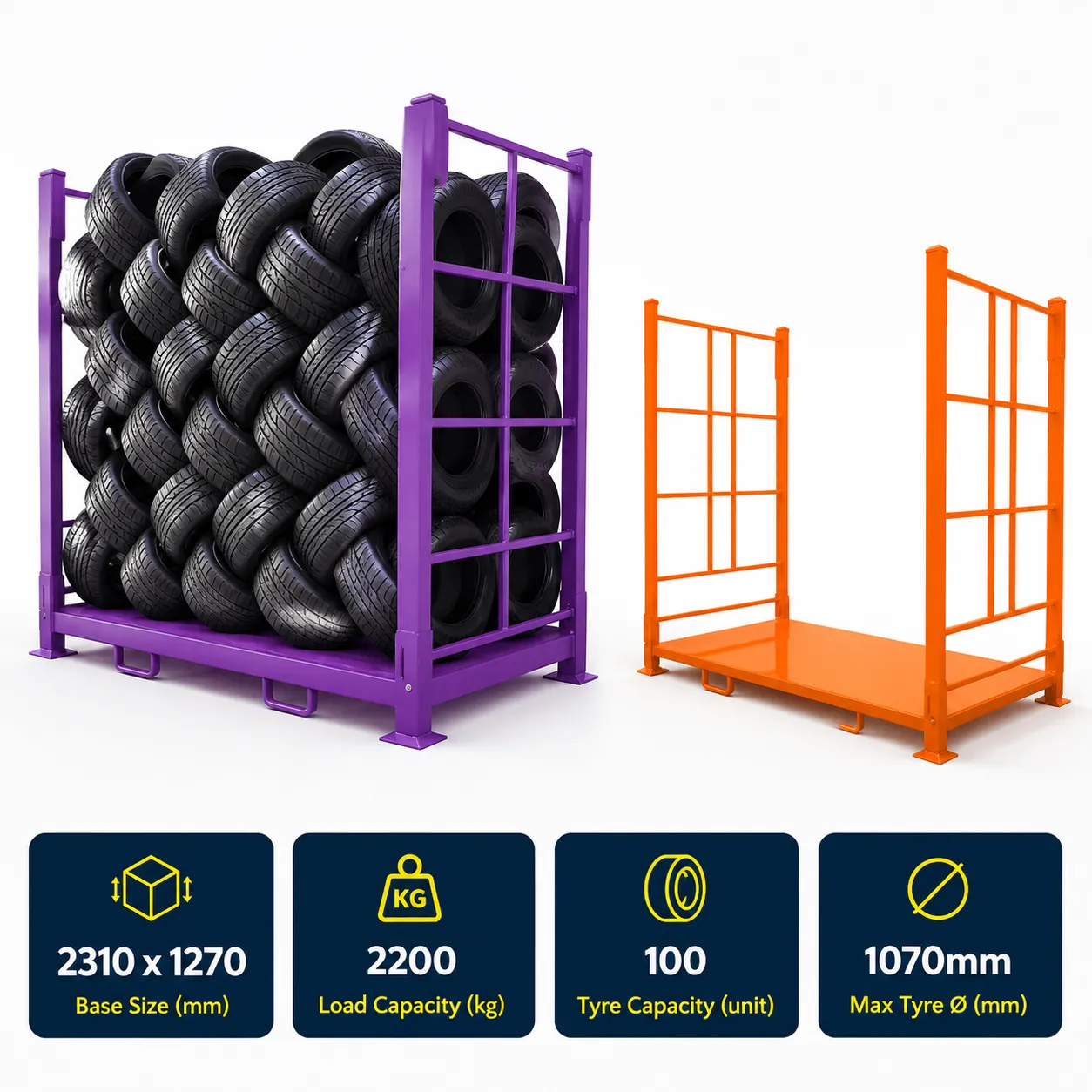

JX-01	2310×1270×2200	2200	125	100	1070	4
TSGYR	1600×1420×1970	2400	100	45	1600	4
TSR-6060WM	1610×1610×1520	2400	59	32	810	5
TSR-6060	1610×1610×1520	2400	52	32	810	5
TSR-7272WM	1920×1920×1830	2400	52	32	810	5
